Kubernetes StatefulSet

A set of APIs for running stateful applications in a Linux container cloud.

(aka PetSet)

Code

github.com/jberkus/atomicdb

The way containers are designed, and particularly the way Docker is designed, the assumption is that the container is stateless. -- Mark Davis, ClusterHQ

Twelve-factor processes are stateless and share-nothing. Any data that needs to persist must be stored in a stateful backing service, typically a database. 12factor.net

"backing service"

State What?

What is State?

the difference between code and running applications

Minimal State

• current task
• memory cache
• cluster deployment

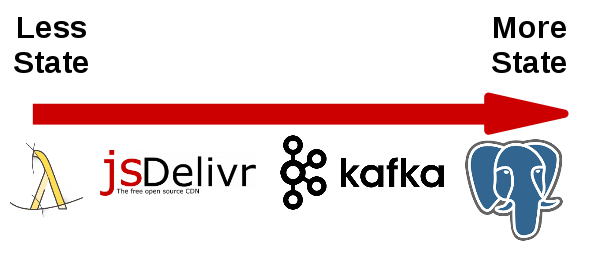

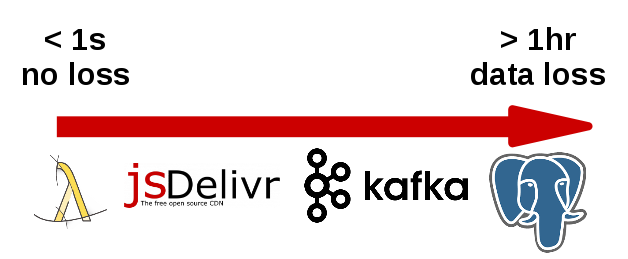

Scale Of State

Switching Cost

Four Stateful Qualities

1. Storage

Four Stateful Qualities

1. Storage
2. Node Identity
3. Cluster Role
4. Session State

1. Storage

Storage Requirements

• goes with the container
• exclusive write access

Storage Solutions

1. automated dir naming
   in app initialization
2. automated data migration
   Flocker Volumes
3. network storage
   (allocated per container)
   Kube StatefulSet PVT

StatefulSet PVT

• Persistent Volume Template
• Requests new network storage for each pod
• Storage associated with the pod (container)
• Replacements get same storage

StatefulSet PVT

volumeClaimTemplates:
- metadata:
    name: pgdata
    annotations:
      volume.alpha.kubernetes.io/storage-class: anything
  spec:
    accessModes: [ ReadWriteOnce ]

StatefulSet PVT

[root@ip-172-31-47-16 ~]# kubectl get pvc
NAME               STATUS  CAPACITY   AGE
pgdata-patroni-0   Bound   25Gi       59m
pgdata-patroni-1   Bound   25Gi       59m
pgdata-patroni-2   Bound   25Gi       59m

StatefulSet PVT Limitations

• no local storage (yet)
• recovery logic
• garbage collection

2. Identity

Identity Needs

• peering nodes
  etcd, cassandra
  replication slots
• special nodes
  replication master
  reporting nodes
  spares/shadows

Identity Attributes

1. individual
2. durable
3. predictable
4. addressable

StatefulSet Identity

[centos@ip-172-31-45-224 ~]$ kubectl get pods
NAME            READY     STATUS    RESTARTS   AGE
etcd-0          1/1       Running   0          5d
etcd-1          1/1       Running   0          5d
etcd-2          1/1       Running   0          5d
patroni-0       1/1       Running   0          2d
patroni-1       1/1       Running   0          2d
patroni-2       1/1       Running   0          2d
patroni-3       1/1       Running   0          2d
patroni-4       1/1       Running   0          2d

StatefulSet Identity

• pods start with -0 and increment
• pods start in order
• routable as pod-0.service.svc.cluster.local

StatefulSet WIP

• replacement
• promotion
• namespacing
• shadow nodes
• federation

3. Cluster Role

Cluster Role

what is my job in the cluster?

• replication master
• shard X
• storage bucket Y
• bootstrap node

Cluster Role

• can (does) change
• sometimes exclusive
• leader elections

Cluster Role

DCS to the rescue!

1. DCS shared config
2. DCS leader elections
3. annotations/labels

DCS?

distributed consensus store

• etcd
• consul
• zookeeper
• embedded RAFT

consistent, fault-tolerant

DCS vs. Embedded

DCS: scale, manage separately. Proven software.

Embedded: Just One Image. Fewer cluster fail scenarios.

Bot/Autopilot

Bot Code

Code in the application container which automatically manages its Cluster Role using a simple state machine and access to a consensus store.

• automatic
• autonomous
• correct

Cluster Role

[root@psql-3615923279-dvli8 /]# curl -L
etcd:2379/v2/keys/service/patroni01/members/patroni_2
{
...
{role:master,
 state:running,
 conn_url:postgres://patroni-2.patroni:5432/postgres,
 api_url:http://patroni-2.patroni:8008/patroni,
 xlog_location:67109184}
    }
}

Cluster Role

kubectl get pods -l patroni-role -L patroni-role
NAME        READY     STATUS       PATRONI-ROLE
patroni-0   1/1       Running      replica
patroni-1   1/1       Running      replica
patroni-2   1/1       Running      master

Bot/DCS Issues

• switching asynchronous
• inconsistency
• failover data loss
• cluster failure
• MOAR TESTING!

4. Sessions

Session State

not everything is a REST request

• downloads
• database transactions
• data state
• auth server sessions

Session State

solutions?

• discovery DNS
  ... don't follow failover
• smart proxies
  ... not done yet

Discovery DNS

psql -h pgwrite.patroni.default.svc.cluster.local
psql -h pgread.patroni.default.svc.cluster.local

Session State Future

Develop smart proxies which read Cluster Role events and automatically reconfigure and fail over connections according to an autonomous rules system.

Stateful Solutions

1. Storage: StatefulSet PVT (70%)
2. Identity: StatefulSet (90%)
3. Cluster Role: DCS + Bot (70%)
4. Session: Discovery DNS (50%)

¿questions?
